Polar Active Ice® Upper Foot & Ankle Cold Therapy System, 16-Quart Cooling Reservoir

Benefits and Features of the Active Ice® 3.0 Cold Therapy System

The Design:

• Specifically designed to deliver drug-free pain relief after injury or post-surgery, when serious pain relief is required!
• Whisper-quiet, high-efficiency pump circulates cold water throughout the therapy pad.
• Customize your cold therapy on and off cycles with the patent-pending programmable digital timer.
• Our cooling reservoirs will hold more ice or frozen water bottles than competitors, which will lengthen the duration of cold therapy before needing to add more ice or swapping out your frozen water bottles. With twice the reservoir size allowing for twice the ice/frozen water bottle capacity as our biggest competitors, Active Ice® will get you through the night!
• Try frozen water bottles instead of ice! Our large cooling reservoirs allow for the use of frozen water bottles which is an easy and convenient alternative to ice. They are reusable and can be easily swapped out with an extra set from the freezer once thawed, eliminating the need to drain melted water. This is also a big help for the caregiver. The 9-quart cooling reservoir holds up to six (6) 500 ml frozen water bottles and the 16-quart cooling reservoir holds up to twelve (12) 500 ml frozen water bottles.
• Convenient on/off button on the programmable digital timer eliminates any potential danger from fumbling in the dark to plug-in or unplug your system.
• The cooler lid on the system is hinged and snaps in place, keeping it properly sealed. No mess!
• The therapy pad is optimized to provide comfortable cold therapy to the desired body part while providing gentle compression. The insulated outer fabric directs maximum cold therapy to the target area.
• Comfortable and easy to reuse time and time again; simply add ice and water to the cooler!
• High-flow, dry, quick-disconnect couplings allow for freedom of movement, if needed.

The Timer: A critical safety feature! The patent-pending programmable digital timer allows the system to be set specifically per your healthcare providers' recommendation. The user can set custom "on" and "off" times. Examples include (but are not limited to) setting our system to cycle throughout the night with 20 minutes on and then 40 minutes off, or on for just 30 minutes and then shut off. For instructions on how to use the programmable digital timer, please refer to your Active Ice® 3.0 Cold Therapy System instruction manual.

Product Specifications

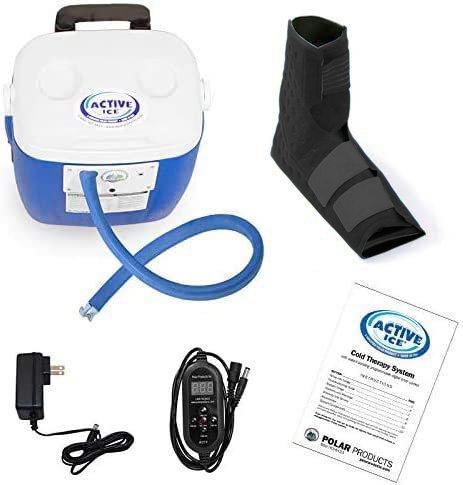

What goes into the Polar Active Ice® 3.0 Cold Therapy System?

	16-Quart Cooling Reservoir 13" x 17" x 14.5" Weighs 7.75 lbs. (without ice or water in the reservoir) Patent-pending programmable digital timer Timer cord is 32" from cooling reservoir to remote and 18.5" from remote to plug-in with power supply (50.5" total) 5 feet of attached insulated tubing 120/240 VAC, 50/60 Hz Adapter converting to 12 VDC for Active Ice® System operation
	Foot & Ankle Therapy Pad 11" x 12.5" with one (1) attached 3" x 2" elastic strap (at top) and two (2) attached straps (on top of foot) TPU: 100% Thermoplastic Polyurethanes Velcro fabric: 100% Polyester Yarn Foam tubing: 100% Synthetic Rubber This therapy pad is used for foot and ankle cold therapy.

Optional Accessories for the Active Ice® 3.0 Cold Therapy System

	Digital Programmable Timer & Temperature Flow Control  #DFT This combination programmable timer and flow control is used instead of the standard programmable digital timer. In addition to custom cold therapy on and off cycles, this allows you to modify the flow of the water, modifying the temperature and giving you even more customization for your therapy. It is plugged-in between the power supply and the cooling reservoir. It has four temperature flow settings: 4 (coldest), 3, 2 and 1 (least cold).
	Five-Foot Insulated Tubing Extension  #XT4 This tubing extension provides an additional five feet of insulated tubing. It connects in between the therapy pad and cooling reservoir's tubing via quick-disconnect couplings.
	Power Take-Off Adapter  #PTOA  This power take-off adapter plugs directly into a car, boat, RV or any 12 Volt DC Car power outlet, which allows the Active Ice® System to be used on-the-go.
	Lithium-ion Battery Pack  #BPL This battery pack is perfect for the on-the-go operation of our Active Ice® System! Includes charger.
	Timer Extension Cord  #TEC This 8-foot timer extension cord allows for the timer to be placed closer to the user and adds flexibility in regards to timer placement.

To view all of the Active Ice® accessories available, click here.

Product Warranty Information

Polar Products Inc. warrants that this product is free from defects in workmanship, materials and fitness for use, for six-months from initial purchase under normal use for which it was intended. Polar's obligation under this warranty is limited to the replacement or repair of any defective part(s) of this product. If you have a problem with your Active Ice® 3.0 System, please call Polar's customer service at 1.800.763.8423 to obtain a Returned Goods Authorization number (RGA#).

Please note: health regulations prohibit us from accepting returns on used cold therapy systems. If there is a problem with its operation (as covered by the warranty), and the system is within its 180-day warranty period, it will be repaired at no charge. Unused systems may be returned with a 15% disassembly, inspection and restocking fee, within 30 days of the initial purchase. Call Polar to arrange.
